CARTES

- EUROPE
* EU 09N
* EU 05S
* EU 05N

ROUTE :
#######


(carte EU 09N)


LFBO (Toulouse) -> UN871 -> GAI
-------------------------------
* Elevation : 152m
* RWY : 14L, 14R, 32L, 32R
* RADIO :
# GND : 121.9
# CLR : 121.7
# TWR : 118.1
# ATIS : 123.125


* NAV 1 : TOU 117.7, 232° (departure 32L/R)
* NAV 2 : GAI 115.8, 031° or 054°

* SID : 14L/R EAST, 32L/R EAST
# 14L/R, GAILLAC 5A : Turn Left, Fly 031° TO VOR GAI 115.8
# 32L/R, GAILLAC 5B : Fly 323° TO TOU 117.7,
turn right, Fly 054° TO VAR GAI 115.8


GAI -> V12 -> CFA
------------------
* Turn Left 029°, follow NAV2(from) for 125nm
* NAV 1 : CFA 114.35, 018°


(carte EU 05S)
CFA -> A27 -> MOU
-----------------
* Turn Left 018°, follow NAV1(from) for 58nm
* NAV 2 : MOU 116.7, 009°

MOU -> B373 -> TRO
------------------
* Turn Left 009°, follow NAV2(from) for 94nm
* NAV 1 : TRO 116.0, 012°

TRO -> G40 -> ARSIL
-------------------
* Turn right 012°, follow NAV1(from) for 19nm
* NAV 2 : REM 112.3, 359°


FIX ARSIL
---------
* Intersection : NAV1 012°(from) 19nm / NAV2(to) 359° 45nm

ARSIL -> B3 -> REM
------------------
* Turn left 359°, follow NAV2(to) 359° for 45nm
* NAV 1 : 113.2, 22°

REM -> Y50 -> CIV
-----------------
* Turn left 354°, follow NAV2(from) 354° for 76nm

(carrte EU 05N)


CIV -> UN872 -> DENOX
-------------------
* Turn right 022°, follow NAV1(from) for 20nm
* NAV2 : 117.4, 019°
* ADF1 0360


FIX DENOX
---------
* Intersection NAV1 022° (from) 20nm / NAV2 019(to) 18nm / ADF1 104°


DENOX -> UN872 -> NIK
---------------------
* Turn left 019°, follow NAV2(to) for 18nm
* NAV1 : 110.4, 316°

NIK -> N872 -> LARAS
--------------------
* Turn right 025°, follow NAV2(from) for 45nm

FIX LARAS
---------
* Intersection NAV1 316° (to), NAV2 025° (from)

LARAS -> L74 -> RTM
-------------------
* Turn left 316°, follow NAV1(to) for 12nm
* ILS 110.9

RTM -> EHRD
-----------
* Elevation : -4m
* RWY : 06, 24
* RADIO :
# ATIS : 110.4
# DLV : 122.75
# TWR, 118.2, 119.7

* RWY24 : ILS 110.9 237°
* RWY06 : ILS 110.9 057°

(check map)

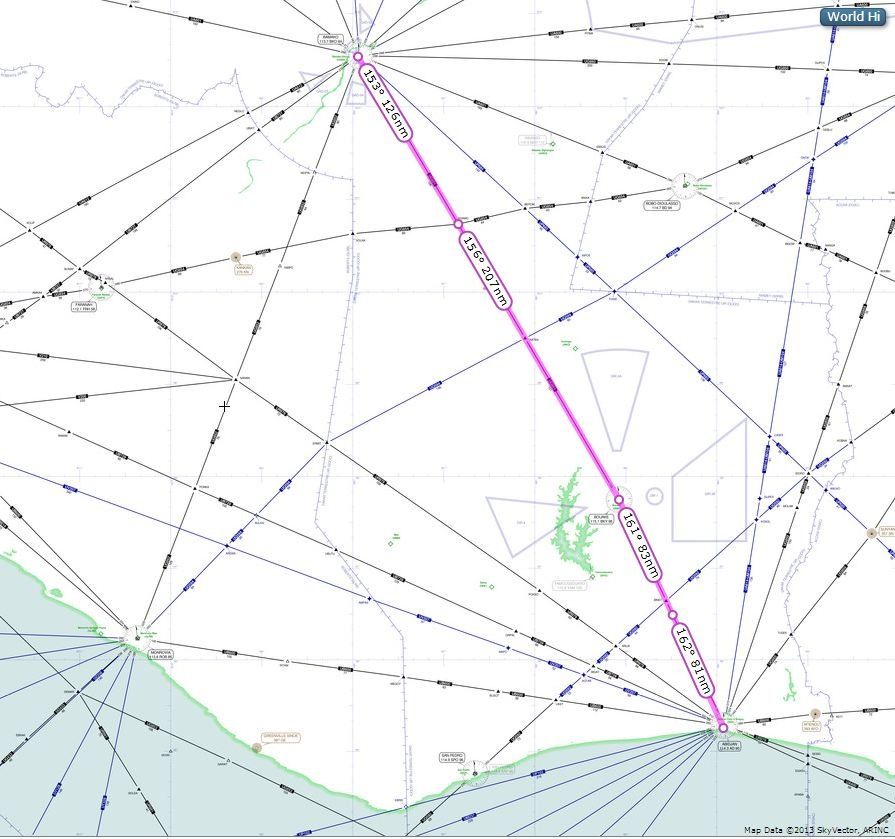

GABS (Bamako) -> DIAP (Abidjan)

LFBO (Toulouse) -> LXGB (Gibraltar)

LXGB (Gibraltar) -> GMMX (Marrakech)

GMMX (Marrakech) -> GCXO (Tenerife)

GCXO (Tenerife) -> GOOY (Dakar)

GOOY (Dakar) -> GABS (Bamako)

http://skyvector.com/?ll=34.21240784684103,-119.60009765846138&chart=302&zoom=3&plan=A.K2.KLAX:V.K2.LAX:F.K2.SADDE:V.K2.VTU:F.K2.DEANO:F.K2.GOLET:F.K2.LOBER:F.K2.HABUT:A.K2.KSBA
